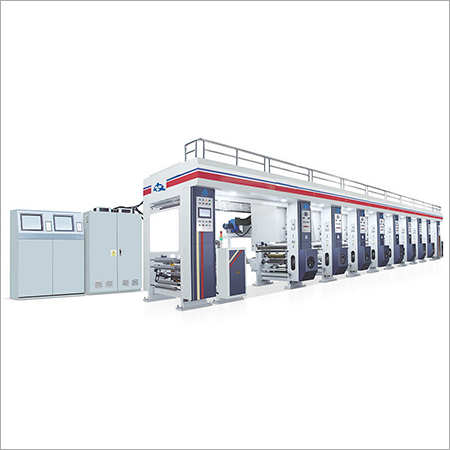

7 Motors Gravure Printing Machine

7 Motors Gravure Printing Machine
7 Motors Gravure Printing Machine
Product Code : FHAY800 1150A1
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 100000 USD ($)
Product Specifications
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Print Direction
  • Uni-Directional
  • Ink Type
  • UV Curing Ink
  • Color Management
  • 7 colours
  • Control System
  • PLC Control
  • Warranty
  • 1 year
Product Description

FHAY800 1150A1 - 7 Motors Gravure Printng Machine

FEATURES:

  • USEIdeal for CPP BOPPPETPVCD etc. with speed of 5-200m/min
  • Main transmission mechanismMain drive is designed with inverter motor having transmission to save the electricity.
  • Shaftless lock up the plate institutionIt adopts the cylinder, crosswise adopts screw moving and pull corn shaft for lock up plate to save change plate time and ensure high quality.
  • Oil scraper institutionIt can be adjusted up down and in any angle. It adopts double cylinder to enhance the lifetime of the plate.
  • Pressure lift institution : This adopts double cylinder with lock self to protect the cylinder leakage and stop machine for ensuring pressure average.
  • register color manipulator It adopts computer control synchronous motor adjustment with transmission flexible and register precision higher.
  • unwinding and rewinding partIt adopts durable double unwinding and rewinding shaft that connects material. Unwinding and rewinding tension adopts frequency conversion vector control line speed to expedite register stable for large printing to save material, solvent, oil and energy with material speed of 120m/min and save 20m more than three motor with 15% energy.
  • Dry and cool part  drying box adopts centrifugal fan blowing as well as water cooling roll lower film temperature. Temperature control by intelligent temperature controller to save electricity.

PARAMETER

 MODEL

FH-AY-850A1

FHAY-1150A1

 The width of printing

850mm

1150mm

 Printing speed

Max 210mm

M A X210m/min

 Diameter of plate

Φ100-350mm

Φ100-350mm

 The unwinding and rewinding roll of diameter

Φ600mm

Φ600mm

 Crosswise adjustment of printing plate

30mm

30mm

 Portrait  adjustment of plate

100(degree)

100(degree)

 Register precision

±0.08mm

±0.08mm

 Total power

75kw

90kw

 Machine weight

27000kg

32000kg

 dimension

17580x2650x2800mm

17580x2950x2800mm

Trade Information
  • FOB Port
  • Ningbo china
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 500 piece Per Year
  • Delivery Time
  • 1 month Months
  • Packaging Details
  • wooden case
  • Main Export Market(s)
  • Asia
