Automatic Flexo Printing Machine

Automatic Flexo Printing Machine
Automatic Flexo Printing Machine
Product Code : FUHR 320 480
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

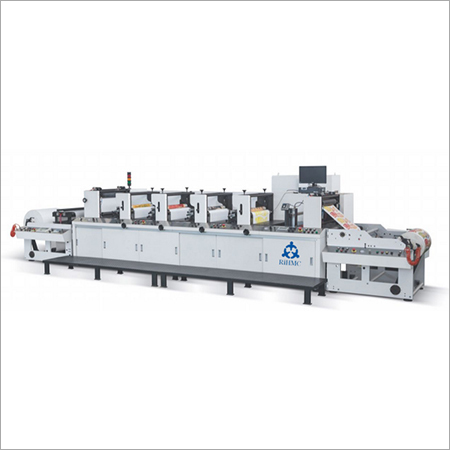

FUHR 320 480 Automatic Flexo Printing Machine

FUHR 320 480 Automatic Flexo Printing Machine is designed to adopt ceramics anilox roll transmission oil. It is designed to use the magnetic powder brake as well as clutch control with an option of Mitsubishi). This machine is available with a powerful motor that adopts import inverter continuously viable. The feeding material is designed to provide printing, positive and negative turning printing, automatic infrared drying, coating, cutting, etc. This machine is utilized for many printing factory machine.

Features of FUHR 320 480 Automatic Flexo Printing Machine:

  • Designed to choose polishing and UV drying
  • Printing unit adheres to 360 degree for plate adjustment with a group infrared drying device.
  • When stop machine oil roll can automatic brake,
  • Reduces the speed running to protect the water oil dry and hard
  • Ensures to make operation easy as well as swift with hood printing register
  • Anilox roll transmission oil with good oil color
  • 360 degree constant adjustable lengthways register set
  • Counting can up to setting to the clients
  • Printing number as well as counting reached with automatic stop
  • Up and down printing plate by cylinder with automatic mix oil
  • Speed is adjusted by the inverter to make it suitable for different printing speed
  • Plate roller seat as well as rewinding shaft part with jog and stop button

PARAMETER

 Model

 RIHR 320

 FUHR 480

 Printing speed

 50m/min

 50m/min

 Printing colors

 4 colors

 4colors

 Max width of the paper roll

 330mm

 430mm

 Max printing roll

 320mm

 420mm

 The diameter of unwinding roll

 600mm

 600mm

 The diameter of rewinding roll

 550mm

 550mm

 Printing perimeter

 175-320mm

 175-320mm

 Register precision

 ±0.10mm

 ±0.10mm

 Weight

 1900kgs

 2200

 dimension

 2000x1100x2700mm

 2000x1200x2700mm
