Automatic Gravure Printing Machine

Next > >

Send Inquiry

Product Code : FHAY-850 1150C1

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Price Range
100000.00 - 120000.00 USD ($)
Price
100000 USD ($)

Product Specifications

Type
machine suitable BOPP、PET、CPP、PVCD etc same qualitative compound film,paper.
Computerized
Yes

Automatic Grade
Automatic
Print Direction
Uni-Directional

Ink Type
UV Curing Ink
Color Management
7 colours

Control System
PLC Control
Power
220 Watt/Volt ( w/v)

Warranty
1 year

Product Description

Automatic Gravure Printing Machine (Automatic Rotogravure Printing Machine)

FEATURES:

USE：this machine is ideal for PET, BOPP, CPP and PVCD with similar qualitative compound film as well as paper. Its speed is 5-150m/min.
Main transmission mechanism：main drive adopts inverter motor as well as transmission every group printing plate for saving electricity.
Shaftless lock up the plate institution：lock up the plate to adhere the cylinder as well as pull corn shaft for lock up plate and crosswise to adopt screw moving for saving change plate time and enhance quality.
Oil scraper institution ：adjustment of up down and in any angle is very easy. Scraper pressure is adopted by double cylinder with crosswise moving adheres 3 phases asynchronous motor transmission scraper fulcrum moving to enhance the lifetime of the plate.
Pressure lift institution ：pressure printing adopts double cylinder with lock self to protect to the cylinder leakage as well as stop machine to ensure pressure average and aberration.
Register color manipulator ：it ensures to adopt computer control harmonize motor adjustment by #000uce transmission ball screw as well as automatic register for transmission flexible.
Unwinding and rewinding part：it adopts double unwinding and rewinding shaft with automatic connect material. It comes with unwinding and rewinding tension adopts the frequency conversion vector control line speed. It adopts vector frequency conversion control to expedite register stable and save products cost.
Dry and cool part ： drying box adopts centrifugal fan blowing as well as water cooling roll lower film temperature. It is available with drying box form blast capacity hot recycle by intelligent temperature controller to save electricity.

PARAMETER:

MODEL	FHAY-850C1	FHAY-1150C1
The width of printing	850mm	1150mm
Printing speed	Max 150mm	MAX150m/min
Diameter of plate	Φ100-350mm	Φ100-350mm
The unwinding and rewinding roll of diameter	Φ600mm	Φ600mm
Crosswise adjustment of printing plate	30mm	30mm
Master control	PLC joint control	PLC joint control
Register precision	±0.1mm	±0.1mm
Total power	80kw	100kw
Machine weight	18000kg	20000kg
dimension	12900x2900x2700mm	12900x3200x2700mm

Trade Information

FOB Port
Ningbo china
Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
5 pieces Per Year
Delivery Time
1 Months

Packaging Details
wooden packing
Main Export Market(s)
Asia

FUHANG MACHINE COMPANY

Describe Your BUYING Requirement *

* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.

Other Products in 'Rotogravure Printing Machine' category

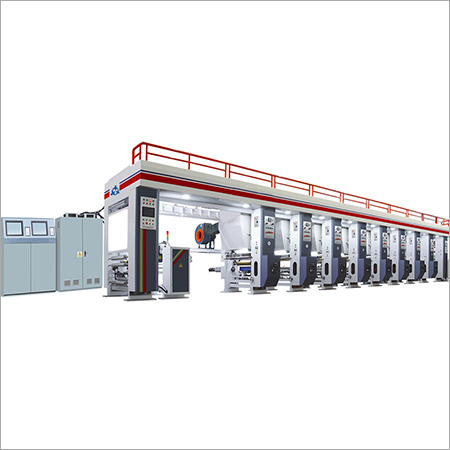

7 Motors Gravure Printing Machine
