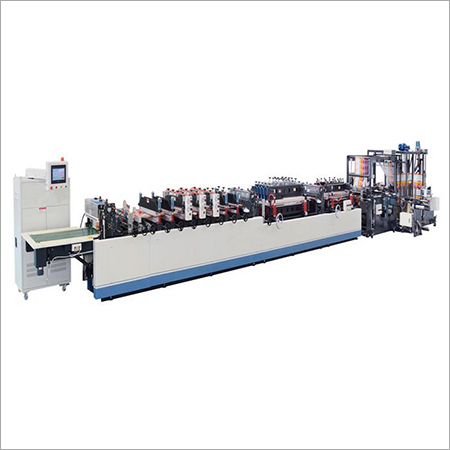

Food Bag Making Machine

Next > >

<< Previous

Send Inquiry

Product Code : FUHN-330

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Product Description

This well-organized and powerful Food Bag Making Machine is ideal for carrying out different processes from bottom gluing, forming, cutting, bottom folding, to finishing operations. This is available in easy to use structure with modern control panels as well as high-end touch screen man-machine interface. It consumes 16Kw power consumption ensuring to provide energy-saving and high efficiency performance with easy operations. This machine is designed for developing different types of food bags from bread, KFC, McD and other leaders of the market. This is available with printing color tracking system having German color photoelectric tracking accuracy and automatic calibration function.

Key Features:

Automatic constant tension control system
Available with high speed of creating 150-300 pcs /min
Magnetic powder tension control
Material handling capacity having pneumatic lifting arrangement to ensure to decrease the loading and unloading time
PC programmable control system and German servo motor control
Printing color tracking system with photoelectric sensor automatic control system

PARAMETER:

Model	FUHN-330
Paper Thickness Range	35-100 GSM
Paper Bag Width Range	80-330mm
Paper Bag Length Range	175-720mm
Side Folding Range	12-60mm
Plastic Film Feeding Width	400mm
Production Precision	±0.2mm
Machinery Speed	150-300 pcs /min
Maximum paper roll Width	900mm
Maximum. Paper roll Diameter	1200mm
Total Power	16 KW
Machine Weight	5500KGS
Machine Size	850018001900mm
Machine Color	White or other
